USB Digital Microscope Endoscope 1000X 2MP 8LED Magnifier Camera + Lift Stand in Its Own Individual Package.
6 Pc Lot Brand New! Reg. $ 24.99 Each

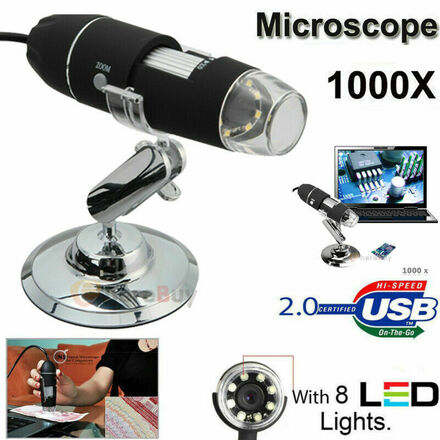

2MP 1000X 8 LED USB Digital Microscope Endoscope Zoom Camera Magnifier + Stand
100% New & Excellent Quality
Local Fast Shipping From NJ, USA
Each set will be fully tested before shipping
Free Return (Seller will pay the returning fee), welcome to buy with confidence.
This high quality electronic microscope beats normal microscopes any day. You can use it to snap HD pictures, capture close-up video, and measure objects with the help of AP software. It has 8 built-in LED lights on the camera head that brightly illuminate the area being examined.
You can use this microscope as a teaching tool, for school projects, to examine computer parts and telecommunications components, in laboratories and medical facilities, for dissections, and inspection of valuable jewels and coins.
Brand New And Durable
Mega CMOS Sensor
Portable, Lightweight And Easy To Use
8 Adjustable Built In Illuminator LED
Built In Illuminator 8 LED
Automatic Light Contrast And Fine Focus
Displays The Magnified Image On Computer Screen
Can Be Used In Inspection Such As Skin, Hair, Education, Collection, Industrial, And Biological
HD Color CMOS Sensor, High Speed DSP
Contains Digital Measurement Software And Calibration

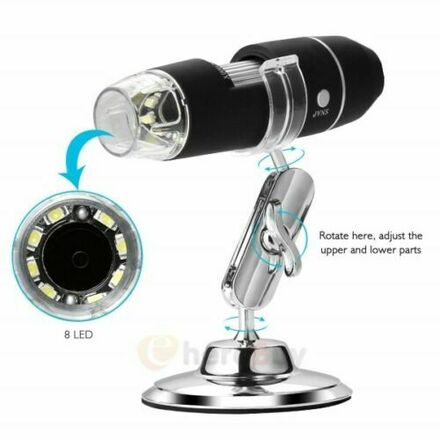

Contains An Adjustable Metal Stand
Both Picture And Video Are Supported
Image Sensor: CMOS sensor max. 2 mega pixels
Magnification Ratio: 20x to 1000x
Color:black and gray
Focus Range: from 10mm to 40mm
Light Source: 8 white LED lights
Video Format: AVI
Photo Format: JPEG or BMP
Video Capture Resolution: 320x240, 640x480, 1280x1024, 1600x1200
Still Image Capture Resolution: 320x240, 640x480, 1280x1024, 1600x1200
Frame Rate 30 f/s under 600 lumens brightness
Digital Zoom: 5X sequence mode
PC Interface: Mini USB 1.1 & USB 2.0
Power Source: 5V DC from USB port
Gray Scale: Level 8
Sleep Current: 1mA
Working Current: 180mA
OSD Language: English, German, Spanish, Korean, French, Russian
Fit Operation System: Windows 7/Vista/XP 32bits/64bits (NOT Compatible with Windows 8)
System Requirement: Pentium Computer with 700MHz & above; 20M HD Space CD ROM Driver, 64MB RAM, Direct X VGA Card; CD disk Driver and Micro-Measurement Tool
USB Cable Length :150CM
1 X USB Digital Microscope
1 X Metal Stand
1 X Installation CD
How to use:
1.Connect the USB digital microscope to computer‘s USB port directly.
2.Put the CD into CD-ROM, then open “My computer”, run the Autorun.
3.Install the Driver, then reset the computer.
4.If the PC SYSTEM is Win XP or older version, Net. Framework 4.0 is needed. Please install it. If antivirus software shows any notice, please choose “allow all”; if the driver or measurement is limited by the antivirus software, they may get problems in installing and running.
5.Choose and install the Measurement, when finished, open and use it.
6.If the driver or measurement can’t be installed or run, please set System Authority and Compatible Mode to them;
7.After installation, click on the desktop icons to run the softwares; Let the microscope lens focus to the object, then adjust roller manually and slowly, until you see a clear image (different models have different focus range, you can't see anything beyond the focus range).
8.More detailed instructions and about the measurement, please read the User Manual.pdf in the CD (opened by pdf reader)
